Introduction

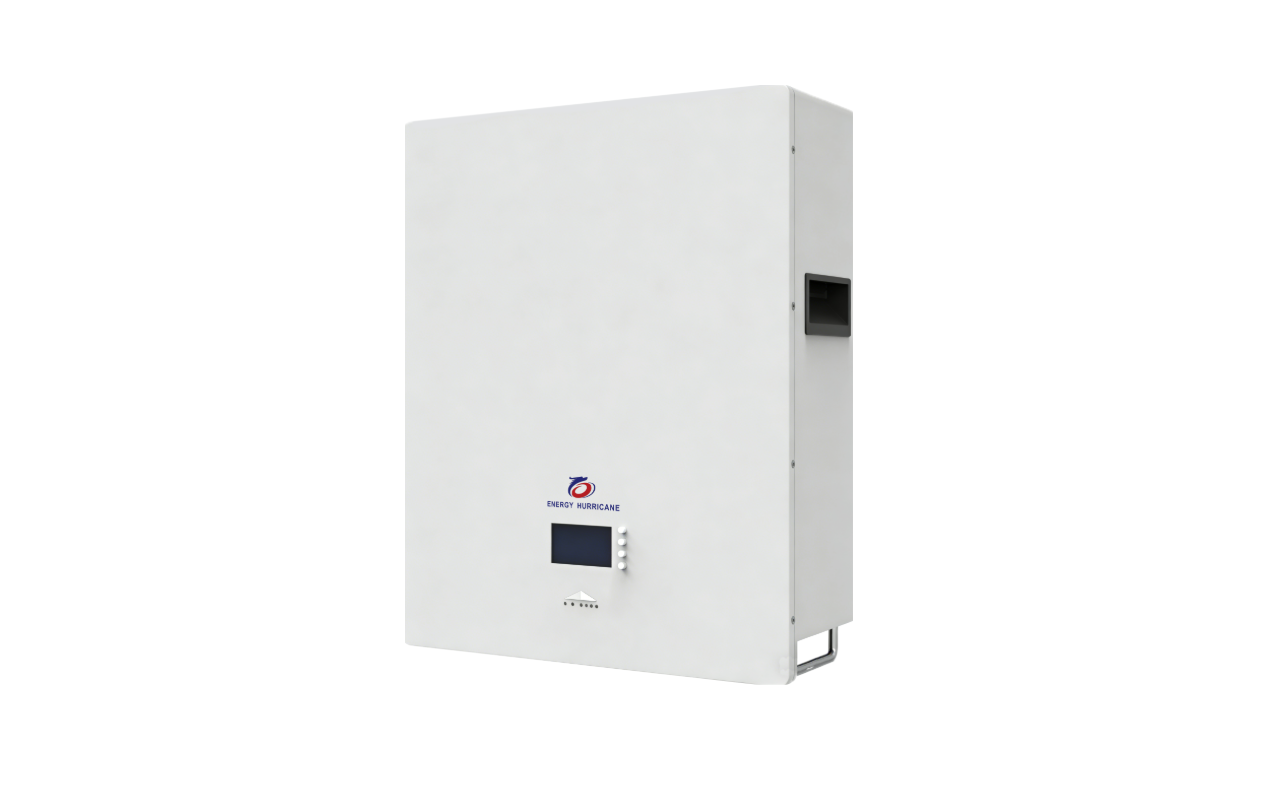

EnergyHurricane’s Wall-Mounted Series Energy Storage Battery (Models: HR5K-100FS, HC-W52-01-IEC) is a space-efficient solution tailored for household energy storage, featuring lithium iron phosphate (LFP) battery technology.

Detailed Specifications:

• Battery Basics: Nominal voltage 51.2V, nominal capacity 100Ah, nominal energy 5.12KWh; operating voltage range 40-58.4V.
• Charge & Discharge Performance: Rated charge/discharge current 50A (max 100A); cycle life up to 6,000 cycles (0.5C 70% EOL@80% DOD).
• Physical & Environmental Parameters:
  • HR5K-100FS: 55kg, 700×490×157mm;
  • HC-W52-01-IEC: 49kg, 500×455×160mm;
  • IP20 protection rating; operating temperature: 0-55℃ (charging), -20-55℃ (discharging).
• Configuration & Certifications: 3.5-inch display, air switch, CAN/RS485 communication; UN38.3 certified (HC-W52-01-IEC additionally meets IEC62619).

Core Advantages

1. Broad Inverter Compatibility：Works with 90% of mainstream inverters on the market, adapting to diverse energy storage systems.
2. Superior Safety & Performance：Equipped with an intelligent BMS; high-energy-density LFP battery delivers a long cycle life (6,000 cycles at 0.5C 70% EOL@80% DOD).
3. Certified Reliability：Complies with international standards (UN38.3, IEC62619), ensuring product quality and safety.
4. Space-Saving & Scalable：Wall-mounted design saves space; supports up to 15 units in parallel for flexible capacity expansion.

With its compact design, broad compatibility, and certified safety, this battery is ideal for indoor home installations. It can be used independently or expanded via parallel connection, making it a cost-effective choice for households to store clean energy and enable flexible power usage.
